Browning A Bolt and A Bolt II mounts: Base screws are 6-48 X 1/4″ long. Ring screws are 6-40 X 5/8″ long. Both screws use 7/64 Allen wrench. Super Short action – Outside to outside of rings is 3.84″. Standard rings have 2 screws per ring and rings are .63″ wide. 4 Hole to hole spacing dimensions are .86″, 3.02″, .56″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″. Fits right hand firearms. Short action – Outside to outside of rings is 3.84″. Standard rings have 2 screws per ring and rings are .63″ wide. Tactical rings have 4 screws per ring and are .80″ wide. 4 Hole to hole spacing dimensions are .86″, 3.11″, .86″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″. Fits both left and right hand firearms. Long action – Outside to outside of rings is 4.60″. Standard rings have 2 screws per ring and rings are .63″ wide. Tactical rings have 4 screws per ring and are .80″ wide. 4 Hole to hole spacing dimensions are .86″, 3.87″, .86″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″. Fits both left and right hand firearms.
Browning A Bolt Mountain TI: Base screws are 6-48 X 1/4″ long and ring screws are 6-40 X 5/8″ long. Both use 7/64″ Allen wrench. Outside to outside of rings is 3.84″. Rings are .63″ wide. 4 Hole to hole spacing dimensions are .86″, 3.11″, .86″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″. Receiver is not the same height on front and back. Fits right hand firearms.
Browning A Bolt 12 gauge slug gun: Base screws are 6-48 X 1/4″ long and ring screws are 6-40 X 5/8″ long. Both use 7/64″ Allen wrench. Outside to outside of rings is 4.46″. Rings are .63″ wide. 4 Hole to hole spacing dimensions are .86″, 3.86″, .86″. Height of mount from top of receiver to centerline of scope tube is – low .98″. Receiver is not same height on front and back. Mount fits right hand firearms.
Browning A Bolt 3: Base screws are 8-40 X 1/4″ long and ring screws are 6-40 X 5/8″ long. Base screws use a 9/64 Allen wrench and ring screws use a 7/64″ Allen wrench. Long action – Outside to outside of rings is 4.61″. Rings are .63″ wide. 4 Hole to hole spacing dimensions are .86″, 3.86″, .86″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″. Mount fits both left and right hand firearms.
Browning BAR and Long action BLR: All BAR actions use the same mount. This mount also fits the long action BLR. Base screws are 6-48 X 1/4″ long and ring screws are 6-40 X 5/8″. Both use 7/64 Allen wrench. Outside to outside of rings is 4.24″. Rings are .63″ wide. 4 Hole to hole spacing dimensions are .50″, 3.19″, .50″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″. Mount fits both left and right hand firearms. Same mount used on a Benelli R1 rifle.
Browning BLR short action: NOTE: *Please check hole spacing before ordering.* Base screws are 6-48 X 1/4″ long and ring screws are 6-40 X 5/8″ long. Both use 7/64 Allen wrench. Outside to outside of rings is 4.29″. Rings are .63″ wide. 4 Hole to hole spacing dimensions are .50″, 2.81″, .50″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″. Mount fits both left and right hand firearms.
Browning T Bolt: Base screws are 6-48 X 1/4″ long and ring screws are 6-40 X 5/8″ long. Both use 7/64 Allen wrench. Outside to outside of rings is 4.29″. Rings are .63″ wide. 4 Hole to hole spacing dimensions are .50″, 2.87″, .50″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″. Mount fits both left and right hand firearms.
Browning Shotgun: Base screws are 8-40 X 1/4″ long and ring screws are 6-40 X 5/8″ long. Base screws use 9/64″ Allen wrench and rings use 7/64 Allen wrench. Outside to outside of rings is 4.29″. Rings are .63″ wide. 3 Hole to hole spacing dimensions are 1.90″, 1.60″. Height of mount from top of receiver to centerline of scope tube is – low .94″. Mount fits both left and right hand firearms.
Browning X Bolt: Base screws are 6-48 X 1/4″ long. Ring screws are 6-40 X 5/8″ long. Both screws use 7/64 Allen wrench. Super Short action – Outside to outside of rings is 3.79″. Rings are .63″ wide. 4 Hole to hole spacing dimensions are .70″, 2.82″, .70″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″. Mount fits right hand firearms. Short action – Outside to outside of rings is 3.91″. Standard rings have 2 screws per ring and rings are .63″ wide. Tactical rings have 4 screws per ring and are .80″ wide. 4 Hole to hole spacing dimensions are .70″, 2.94″, .70″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″. Mount fits right hand firearms. Long action – Outside to outside of rings is 4.58″. Standard rings have 2 screws per ring and rings are .63″ wide. Tactical rings have 4 screws per ring and are .80″ wide. 4 Hole to hole spacing dimensions are .70″, 3.69″, .70″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″. Mount fits right hand firearms.
- Precision machined from a solid block of top-grade billet 6061T6 aluminum
- Custom made to fit each type of firearm and align perfectly with your rifle receiver
- No moving parts between the firearm and the scope
- 67% lighter than comparable one-piece mounts with four times the threads and precision socket-head cap screws for absolute strength and security
- Absorbs shock and withstands temperature extremes better than steel mounts at a fraction of the weight
- Made in the USA

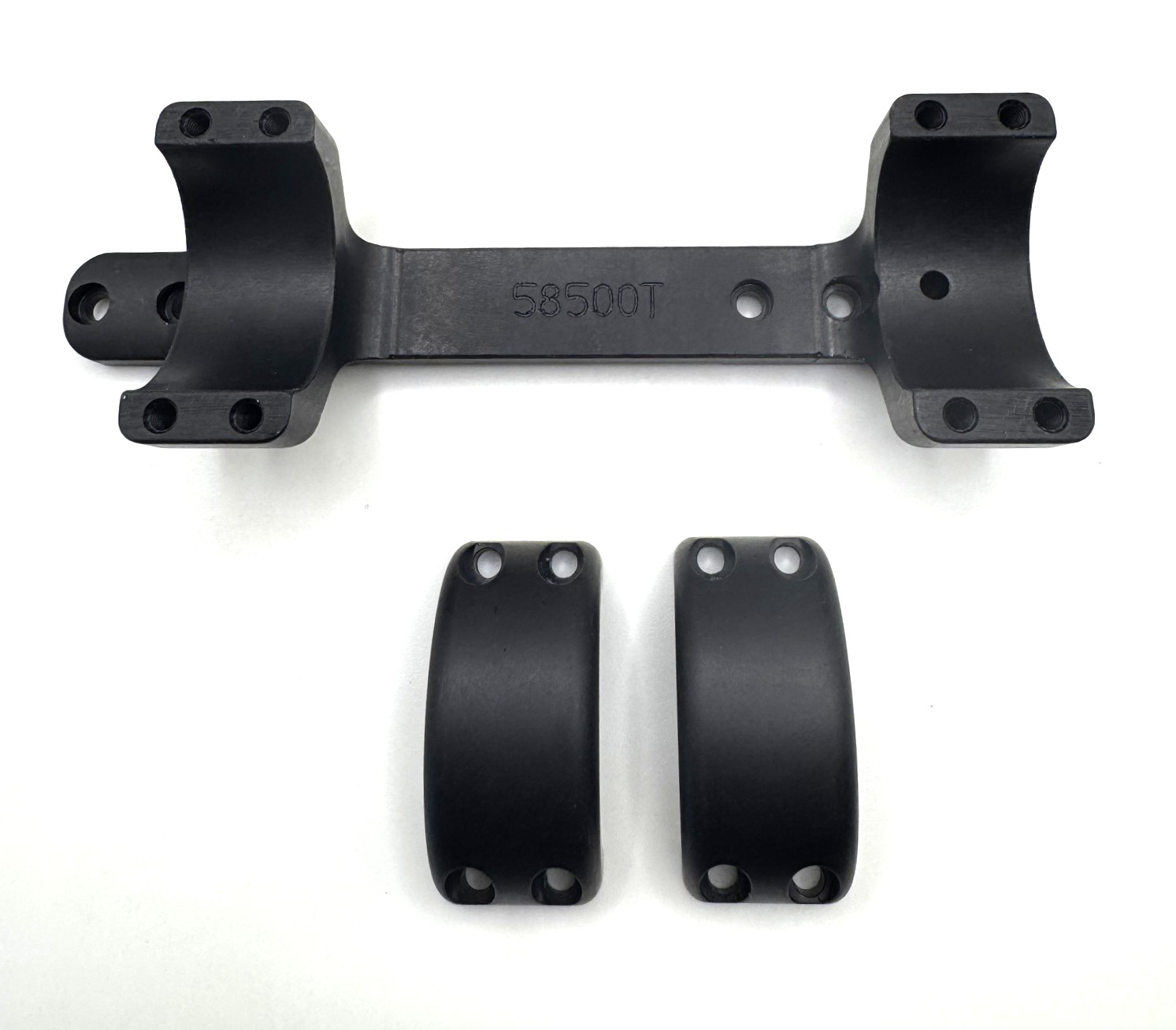

*Mount Disclaimer: Product images are to show color options only. Actual product may look slightly different depending on make and model.
